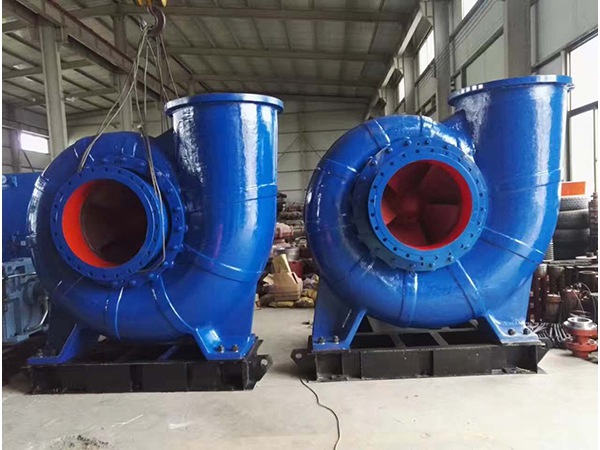

WN型挖泥泵
為了滿足電力、冶金、煤炭等行業發展需要，針對除灰渣及渣漿輸送工況的特點，在幾十年渣漿泵設計制造經驗基礎上，廣泛吸取國內外先進技術和研制成果，我廠開發了我國最新一代大流量、高揚程、可多級串聯的ZGB（P）系列渣漿泵。該系列產品的主要技術特點如下：
采用現代CAD設計方法，水利性能優良，效率高和磨損率低；流道寬敞，抗堵塞性能好，汽蝕性能優越；采用付葉輪加填組合式密封和機械密封，確保渣漿無泄漏；可靠性設計，保證了整機平均無故障工作時間（MTBF）大幅度提高；采用稀油潤滑公制軸承，合理設置潤滑與冷卻系統，保證軸承在低溫下運行；過流部件采用特殊材質，耐磨損耐腐蝕性能好；經特殊處理，用于海水除灰及海水和鹽霧電化學腐蝕工況；在允許的壓力范圍內可以多級串聯使用，其允許最大工作壓力為3.6Mpa；該系列渣漿泵產品具有結構合理、效率高、運行可靠和維修方便等優點，廣泛適用于電力、冶金、礦山、煤炭、建材、化工等工業部門輸送磨蝕性或腐蝕性渣漿，特別是電廠灰渣。
ZGB(P)型渣漿泵性能參數
允許最大功率 | 清水性能參數表 | 葉輪直徑 | ||||
流量 | 揚程 | 轉速 | 效率 | NPSH | ||
Q(l/s) | H(m) | r/m | η% | (m) | ||
542.8-357.6 | 533.3-266.7 | 84.3-93.4 | 980 | 81.2-68.3 | 6.9-3.5 | 760 |
233.9-154.0 | 402.7-201.3 | 48.1-53.3 | 740 | 81.2-68.3 | 3.9-2.0 | |
429.4-282.9 | 493.3-246.7 | 72.1-79.9 | 980 | 81.2-68.3 | 5.9-3.0 | 703 |
184.8-116.4 | 372.5-177.9 | 41.1-45.6 | 740 | 81.2-68.3 | 3.4-1.7 | |
333.3-219.7 | 453.3-226.7 | 60.9-67.5 | 980 | 81.2-68.3 | 5.0-2.5 | 646 |
143.4-94.6 | 342.3-171.2 | 34.5-38.5 | 740 | 81.2-68.3 | 2.9-1.4 | |
542.8-357.6 | 533.3-266.7 | 84.3-93.4 | 980 | 81.2-68.3 | 6.9-3.5 | 760 |
233.9-154.0 | 402.7-201.3 | 48.1-53.3 | 740 | 81.2-68.3 | 3.9-2.0 | |
429.4-282.9 | 493.3-246.7 | 72.1-79.9 | 980 | 81.2-68.3 | 5.9-3.0 | 703 |
184.8-116.4 | 372.5-177.9 | 41.1-45.6 | 740 | 81.2-68.3 | 3.4-1.7 | |
333.3-219.7 | 453.3-226.7 | 60.9-67.5 | 980 | 81.2-68.3 | 5.0-2.5 | 646 |
143.4-94.6 | 342.3-171.2 | 34.5-38.5 | 740 | 81.2-68.3 | 2.9-1.4 | |
542.8-357.6 | 533.3-266.7 | 84.3-93.4 | 980 | 81.2-68.3 | 6.9-3.5 | 760 |
233.9-154.0 | 402.7-201.3 | 48.1-53.3 | 740 | 81.2-68.3 | 3.9-2.0 | |
429.4-282.9 | 493.3-246.7 | 72.1-79.9 | 980 | 81.2-68.3 | 5.9-3.0 | 703 |
184.8-116.4 | 372.5-177.9 | 41.1-45.6 | 740 | 81.2-68.3 | 3.4-1.7 | |
333.3-219.7 | 453.3-226.7 | 60.9-67.5 | 980 | 81.2-68.3 | 5.0-2.5 | 646 |
143.4-94.6 | 342.3-171.2 | 34.5-38.5 | 740 | 81.2-68.3 | 2.9-1.4 | |
542.8-357.6 | 533.3-266.7 | 84.3-93.4 | 980 | 81.2-68.3 | 6.9-3.5 | 760 |
233.9-154.0 | 402.7-201.3 | 48.1-53.3 | 740 | 81.2-68.3 | 3.9-2.0 | |
429.4-282.9 | 493.3-246.7 | 72.1-79.9 | 980 | 81.2-68.3 | 5.9-3.0 | 703 |
184.8-116.4 | 372.5-177.9 | 41.1-45.6 | 740 | 81.2-68.3 | 3.4-1.7 | |
333.3-219.7 | 453.3-226.7 | 60.9-67.5 | 980 | 81.2-68.3 | 5.0-2.5 | 646 |
143.4-94.6 | 342.3-171.2 | 34.5-38.5 | 740 | 81.2-68.3 | 2.9-1.4 | |
542.8-357.6 | 533.3-266.7 | 84.3-93.4 | 980 | 81.2-68.3 | 6.9-3.5 | 760 |
233.9-154.0 | 402.7-201.3 | 48.1-53.3 | 740 | 81.2-68.3 | 3.9-2.0 | |
429.4-282.9 | 493.3-246.7 | 72.1-79.9 | 980 | 81.2-68.3 | 5.9-3.0 | 703 |
184.8-116.4 | 372.5-177.9 | 41.1-45.6 | 740 | 81.2-68.3 | 3.4-1.7 | |
333.3-219.7 | 453.3-226.7 | 60.9-67.5 | 980 | 81.2-68.3 | 5.0-2.5 | 646 |
143.4-94.6 | 342.3-171.2 | 34.5-38.5 | 740 | 81.2-68.3 | 2.9-1.4 | |
429.4-282.9 | 493.3-246.7 | 72.1-79.9 | 980 | 81.2-68.3 | 5.9-3.0 | 703 |
184.8-116.4 | 372.5-177.9 | 41.1-45.6 | 740 | 81.2-68.3 | 3.4-1.7 | |
333.3-219.7 | 453.3-226.7 | 60.9-67.5 | 980 | 81.2-68.3 | 5.0-2.5 | 646 |
143.4-94.6 | 342.3-171.2 | 34.5-38.5 | 740 | 81.2-68.3 | 2.9-1.4 | |
542.8-357.6 | 533.3-266.7 | 84.3-93.4 | 980 | 81.2-68.3 | 6.9-3.5 | 760 |
233.9-154.0 | 402.7-201.3 | 48.1-53.3 | 740 | 81.2-68.3 | 3.9-2.0 | |
429.4-282.9 | 493.3-246.7 | 72.1-79.9 | 980 | 81.2-68.3 | 5.9-3.0 | 703 |
184.8-116.4 | 372.5-177.9 | 41.1-45.6 | 740 | 81.2-68.3 | 3.4-1.7 | |
333.3-219.7 | 453.3-226.7 | 60.9-67.5 | 980 | 81.2-68.3 | 5.0-2.5 | 646 |
143.4-94.6 | 342.3-171.2 | 34.5-38.5 | 740 | 81.2-68.3 | 2.9-1.4 | |
542.8-357.6 | 533.3-266.7 | 84.3-93.4 | 980 | 81.2-68.3 | 6.9-3.5 | 760 |
233.9-154.0 | 402.7-201.3 | 48.1-53.3 | 740 | 81.2-68.3 | 3.9-2.0 | |
429.4-282.9 | 493.3-246.7 | 72.1-79.9 | 980 | 81.2-68.3 | 5.9-3.0 | 703 |
184.8-116.4 | 372.5-177.9 | 41.1-45.6 | 740 | 81.2-68.3 | 3.4-1.7 | |
333.3-219.7 | 453.3-226.7 | 60.9-67.5 | 980 | 81.2-68.3 | 5.0-2.5 | 646 |
143.4-94.6 | 342.3-171.2 | 34.5-38.5 | 740 | 81.2-68.3 | 2.9-1.4 | |
542.8-357.6 | 533.3-266.7 | 84.3-93.4 | 980 | 81.2-68.3 | 6.9-3.5 | 760 |
233.9-154.0 | 402.7-201.3 | 48.1-53.3 | 740 | 81.2-68.3 | 3.9-2.0 | |
429.4-282.9 | 493.3-246.7 | 72.1-79.9 | 980 | 81.2-68.3 | 5.9-3.0 | 703 |
429.4-282.9 | 493.3-246.7 | 72.1-79.9 | 980 | 81.2-68.3 | 5.9-3.0 | 703 |
184.8-116.4 | 372.5-177.9 | 41.1-45.6 | 740 | 81.2-68.3 | 3.4-1.7 | |
333.3-219.7 | 453.3-226.7 | 60.9-67.5 | 980 | 81.2-68.3 | 5.0-2.5 | 646 |
143.4-94.6 | 342.3-171.2 | 34.5-38.5 | 740 | 81.2-68.3 | 2.9-1.4 | |
542.8-357.6 | 533.3-266.7 | 84.3-93.4 | 980 | 81.2-68.3 | 6.9-3.5 | 760 |
233.9-154.0 | 402.7-201.3 | 48.1-53.3 | 740 | 81.2-68.3 | 3.9-2.0 | |
429.4-282.9 | 493.3-246.7 | 72.1-79.9 | 980 | 81.2-68.3 | 5.9-3.0 | 703 |
184.8-116.4 | 372.5-177.9 | 41.1-45.6 | 740 | 81.2-68.3 | 3.4-1.7 | |
